How Big Is a 40x60 Barndominium?
A 40x60 barndominium is 2,400 square feet on a single level, equivalent to a spacious 3- to 4-bedroom home. The 40-foot width provides comfortable room depths for bedrooms, living areas, and kitchens, while the 60-foot length allows for a clear separation between private sleeping quarters and open living spaces.
To put 2,400 square feet in context, the median new single-family home in the United States is approximately 2,200 square feet. A 40x60 barndominium gives you slightly more space than the average American new build, and it does so with the structural advantages of steel clear-span construction: no load-bearing interior walls, complete freedom to design your floor plan however you want, and a building envelope that resists rot, termites, and fire.
If you are new to barndominiums and want to understand how they differ from traditional homes, our complete guide to barndominiums covers everything from construction methods to financing. This article focuses specifically on the 40x60 size -- why it is so popular, what it costs, and how to plan the best layout for your needs.
Here is how a 40x60 compares to other common barndominium sizes:
| Size | Square Feet | Typical Bedrooms | Best For |
|---|---|---|---|
| 30x40 | 1,200 SF | 2 | Starter home, couple, or retirement |
| 30x50 | 1,500 SF | 2-3 | Small family or weekend retreat |
| 40x50 | 2,000 SF | 3 | Growing family, moderate budget |
| 40x60 | 2,400 SF | 3-4 | Most popular -- family home with room to spare |
| 40x80 | 3,200 SF | 4-5 | Large family or home with attached shop |
| 60x80 | 4,800 SF | 5-6 | Estate-sized living or dual-purpose build |
The 40x60 hits the sweet spot because it is large enough to accommodate a family of four to six comfortably, allows for an attached shop or garage bay, and keeps the building width at 40 feet -- a dimension that most steel building manufacturers engineer as a standard clear span, which keeps structural costs lower than wider buildings that require heavier framing.
Barns & Barndos Insight: The 40-foot clear span is a structural sweet spot. It gives you full-width open rooms without any center columns or posts, using standard steel framing that does not require the heavier (and more expensive) members needed for 50- or 60-foot spans. This keeps your per-square-foot steel cost at its most efficient while still providing generous room widths of 12-20 feet throughout the floor plan.
How Much Does a 40x60 Barndominium Cost?
A 40x60 barndominium costs between $60,000 for a shell kit and $720,000 for a luxury turnkey build. The most common range for a fully finished 40x60 barndominium is $120,000 to $360,000, with the exact price depending on your interior finish level, geographic location, and site conditions.
The enormous range in 40x60 barndominium pricing reflects the difference between buying raw materials and buying a completed home. For a detailed breakdown of what drives these numbers at every level, see our complete barndominium guide. Below is the pricing specific to the 2,400 square foot 40x60 footprint.
| Build Level | Cost Per SF | 40x60 Total (2,400 SF) | What You Get |
|---|---|---|---|
| Shell Kit Only | $25 - $35 | $60,000 - $84,000 | Steel frame, wall panels, roof panels, trim, fasteners |
| Shell + Basic Finish (DIY) | $60 - $75 | $144,000 - $180,000 | Foundation, insulation, basic drywall, builder-grade finishes |
| Mid-Range Turnkey | $90 - $140 | $216,000 - $336,000 | Granite counters, LVP flooring, full HVAC, quality fixtures |
| High-End Turnkey | $140 - $210 | $336,000 - $504,000 | Custom cabinets, hardwood floors, premium appliances |
| B&B Standard | $235 | $564,000 | Galvanized steel, solid surface counters, LVP, 50-yr warranty |
| B&B High End | $275 | $660,000 | Quartz counters, hardwood/premium tile, custom cabinetry |
| B&B Luxury | $300 | $720,000 | Natural stone, wide-plank hardwood, smart home, designer selections |
The Barns & Barndos tiers are premium turnkey pricing that includes everything: galvanized steel framing, a 50-year PVDF warranty on exterior finishes, structural engineering by professionals licensed in all 49 states, a concrete slab foundation, full interior finishing, all mechanical systems, and complete project management. There are no hidden costs or surprise change orders. Visit our finish tiers page for the full specification breakdown.
Additional Costs Beyond the Building
The prices above cover the building itself. Budget separately for these common site costs:
- Land: varies dramatically by location ($2,000-$50,000+ per acre)
- Site preparation: $3,000 - $15,000 (clearing, grading, compaction)
- Septic system: $5,000 - $25,000 (if no municipal sewer)
- Well: $5,000 - $15,000 (if no municipal water)
- Driveway: $1,500 - $10,000 depending on length and material
- Utility connections: $2,000 - $20,000 (electrical, gas, water/sewer tap)
- Permits and engineering: $3,000 - $12,000
Key Takeaways: 40x60 Barndominium Cost
- Shell kit: $60,000 - $84,000 for just the steel structure
- Budget build: $144,000 - $180,000 with basic finishes and DIY labor
- Mid-range turnkey: $192,000 - $312,000 with quality finishes and professional construction
- Premium turnkey (Barns & Barndos): $564,000 - $720,000 with galvanized steel, 50-year PVDF warranty, and designer-level finishes
- Site costs add $20,000 - $100,000+ on top of building costs for land prep, utilities, and permits
What Are the Best 40x60 Barndominium Floor Plans?
The best 40x60 barndominium floor plans maximize the 2,400 square foot footprint with an open-concept living area, a split bedroom layout for privacy, and efficient use of the 40-foot width. The three most popular configurations are a 3-bed/2-bath open plan, a 3-bed/2-bath with attached shop, and a 4-bed/2.5-bath family layout.
Because steel construction eliminates load-bearing interior walls, every wall inside a 40x60 barndominium is a design choice, not a structural requirement. You can place rooms wherever they make the most sense for how your family actually lives. For dozens of additional layout ideas across every size, see our barndominium floor plans guide.
Layout 1: Open-Concept 3 Bed / 2 Bath (Full Living)
This is the most popular 40x60 layout. All 2,400 square feet are dedicated to living space with no attached garage or shop. The plan typically includes:
- Open living, kitchen, and dining area: 800-1,000 SF with vaulted ceilings
- Primary suite on one end: 14x16 bedroom with walk-in closet and ensuite bath
- Two secondary bedrooms on the opposite end: 12x12 each, sharing a hall bath
- Laundry room and utility/mechanical room centrally located
- Wraparound covered porch on one or more sides (optional exterior addition)
This layout works best for families who park vehicles in a detached garage or carport and want maximum interior living space. The split-bedroom design places the primary suite as far from the secondary bedrooms as possible, which is ideal for households with children or for hosting overnight guests.
Layout 2: 3 Bed / 2 Bath with Attached Shop
This is the quintessential barndominium layout -- living space on one side, workshop or garage on the other, all under one roof. A common split is:
- Living quarters: approximately 1,600-1,800 SF (40x40 to 40x45 of the building)
- Attached shop/garage: approximately 600-800 SF (40x15 to 40x20) with an overhead door
- 3 bedrooms and 2 full bathrooms in the living portion
- Open kitchen and living area with views into the shop through a pass-through window or glass wall
- Separate exterior entrance for the shop so vehicles and equipment do not pass through living space
This layout is especially popular in rural Texas, Oklahoma, and Tennessee where barndominiums serve as both home and hobby shop. The shop bay accommodates 2-3 vehicles, a full woodworking setup, or a small agricultural equipment storage area.
Layout 3: 4 Bed / 2.5 Bath Family Home
For larger families or those who need a dedicated home office, the 4-bedroom layout uses every square foot of the 2,400 SF footprint for living:
- Primary suite with walk-in closet and private bath: positioned in a rear corner for quiet
- Three secondary bedrooms: 11x12 or 12x12, clustered on the opposite side
- Full hall bathroom shared by secondary bedrooms, plus a half bath near the living area
- Open living/kitchen/dining: approximately 650-800 SF
- Dedicated laundry room and coat/utility closet
- Optional: one bedroom doubles as a home office with French doors
The trade-off with four bedrooms in 2,400 square feet is a slightly smaller open living area. However, the 40-foot clear span means your great room still feels expansive because you can run it the full 40-foot width of the building without any columns breaking up the space.
Barns & Barndos Insight: When designing your 40x60 floor plan, cluster your wet rooms (kitchen, bathrooms, laundry) on one side or back-to-back. This minimizes plumbing pipe runs, reduces installation cost by $3,000-$6,000, and makes future maintenance easier. Our design team optimizes every layout for both livability and construction efficiency before any steel is cut.
Can You Build a 2-Story 40x60 Barndominium?
Yes, you can build a 2-story 40x60 barndominium, which provides up to 4,800 square feet of total living space on the same 2,400 square foot foundation footprint. A full second story requires taller steel columns (typically 20-24 feet at the eave), a structural mezzanine floor system, and a ceiling height of at least 9 feet on each level.
A 2-story 40x60 barndominium is one of the most efficient ways to get a large home without expanding your foundation. You pay for the slab once, but you get double the living space. The cost increase for adding a second story is typically 40-60% more than a single-story build -- not double -- because you are reusing the same foundation, roof, and much of the exterior shell.
2-Story Cost Comparison (40x60 Footprint)
| Configuration | Total SF | Mid-Range Cost | B&B Standard | B&B Luxury |
|---|---|---|---|---|
| Single Story | 2,400 SF | $192,000 - $312,000 | $564,000 | $720,000 |
| 1.5 Story (partial loft) | 3,200 - 3,600 SF | $288,000 - $468,000 | $752,000 - $846,000 | $960,000 - $1,080,000 |
| Full 2 Story | 4,800 SF | $384,000 - $624,000 | $1,128,000 | $1,440,000 |
When a 2-Story Makes Sense
- Limited lot size: If your building site or setback requirements restrict the footprint, going up is more efficient than going wider
- Privacy zoning: Placing bedrooms upstairs and living spaces downstairs creates natural separation between public and private areas
- Views: Second-story rooms capture views that a single-story building cannot access, especially on properties with hills, trees, or water features
- 5+ bedrooms: If you need more than 4 bedrooms, a second story is far more practical than expanding the footprint to 40x80 or larger
2-Story Design Considerations
Building a 2-story barndominium requires planning for a staircase (which consumes approximately 80-120 square feet on each level), a second-floor bathroom with plumbing stacked above the first-floor wet rooms, and adequate HVAC zoning so both levels stay comfortable. You will also need taller eave heights -- a minimum of 20 feet at the eave to allow 9-foot ceilings on both levels plus the floor system thickness.
Key Takeaways: 2-Story 40x60 Barndominium
- 4,800 SF on the same foundation footprint as a single-story build
- 40-60% cost premium over single story -- not double, because the foundation and roof are shared
- Requires taller columns (20-24 ft eave) and engineered mezzanine floor
- Best for large families, limited lot sizes, or when you want distinct public and private levels
What Features Make a 40x60 Barndominium Special?
A 40x60 barndominium stands out because of its 40-foot clear-span steel frame that eliminates interior columns, its 2,400 square feet of flexible living space, and the ability to combine residential living with workshop or garage space under one roof. Steel construction also delivers superior resistance to fire, termites, rot, and severe weather.
The 40x60 is not just popular because of its size. It is popular because the 40-foot width and 60-foot length hit a structural and design sweet spot. Here are the specific features that make this size exceptional. For a broader perspective on the advantages and trade-offs of barndominium living, see our barndominium pros and cons guide.

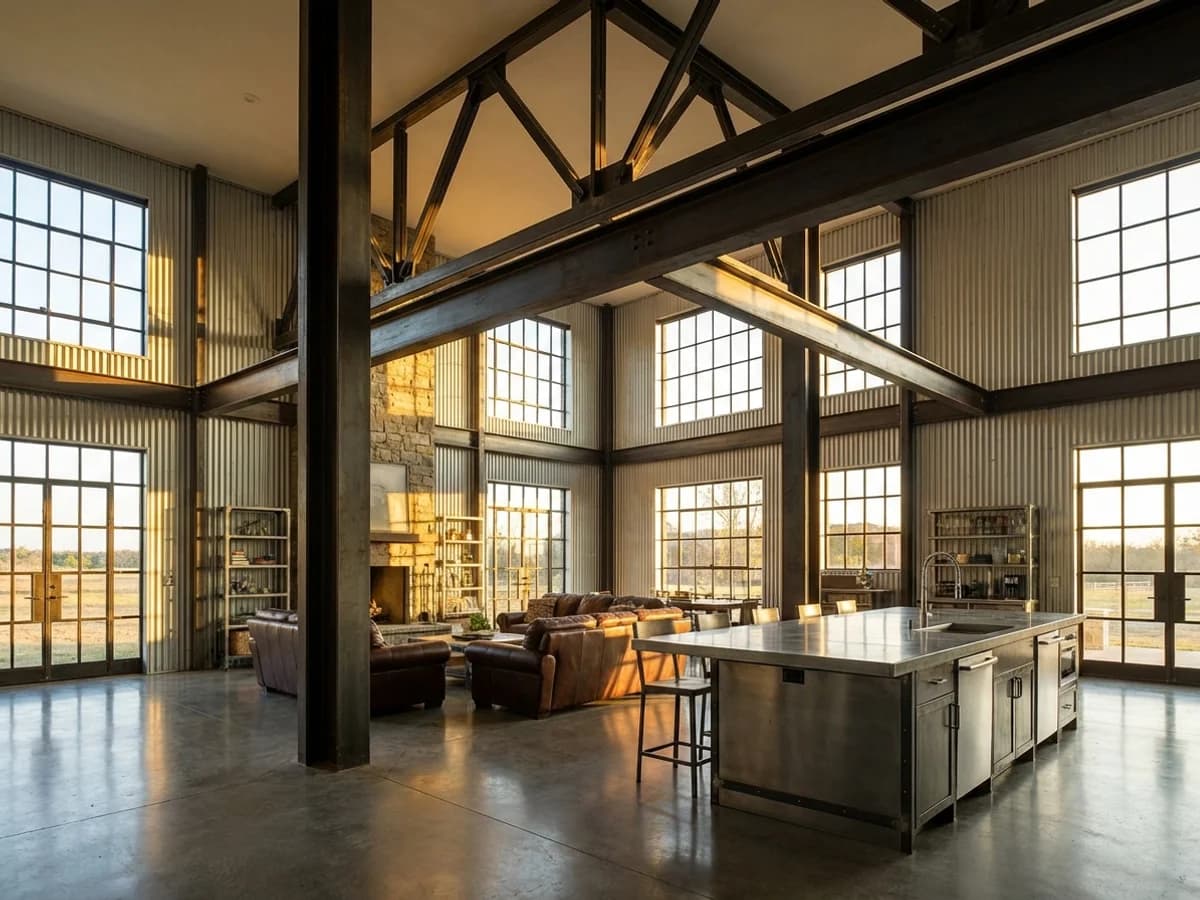

40-Foot Clear Span
The 40-foot width is fully clear-span capable with standard steel framing. That means zero center columns, zero load-bearing interior walls, and complete design freedom for your floor plan. You can create a 20x40 great room, a 40-foot-wide open kitchen and living area, or any room configuration you want. If you ever want to remodel, you simply move non-structural partition walls -- no engineer required.
Dual-Purpose Living
No other building type combines home and workshop as seamlessly as a barndominium. In a 40x60 footprint, you can dedicate 1,600 square feet to living and 800 square feet to a climate-controlled shop -- all under one roof, one HVAC system, and one insurance policy. Add an overhead door on the shop end and a fire-rated wall between living and work spaces, and you have a fully integrated home-and-shop that would cost significantly more to build as two separate structures.
Energy Efficiency
A well-insulated 40x60 steel building is remarkably energy efficient. The rectangular footprint minimizes exterior wall surface area relative to interior volume, and closed-cell spray foam insulation creates an airtight envelope. Steel-frame construction does not shrink, warp, or settle over time, so the building envelope stays tight for decades. Many 40x60 barndominium owners report monthly energy costs 20-30% lower than comparable wood-framed homes.
Severe Weather Resistance
Steel barndominiums are engineered for local wind loads, snow loads, and seismic requirements. Barns & Barndos barndominiums are engineered to meet or exceed local building codes in all 49 states, including hurricane-rated designs for coastal areas like Florida, Texas, and the Carolinas. The PVDF-coated exterior panels resist hail, UV degradation, and salt air corrosion far longer than vinyl siding, fiber cement, or painted wood.
Low Maintenance
Over a 30-year ownership period, a steel barndominium requires dramatically less maintenance than a wood-framed home. There is no exterior painting (PVDF coatings last 50+ years), no rot repair, no termite treatment, and no siding replacement. This reduced maintenance translates to tens of thousands of dollars in long-term savings.
How Long Does It Take to Build a 40x60 Barndominium?
A 40x60 barndominium takes 4 to 8 months to build from foundation pour to move-in day for a turnkey build, or 3 to 5 months for just the shell and exterior. The steel frame itself can be erected in 2 to 5 days. The majority of the build timeline is consumed by interior finishing -- drywall, plumbing, electrical, HVAC, flooring, and cabinetry.
Barndominium construction is significantly faster than traditional stick-built homes because the steel shell goes up in days rather than weeks, and the clear-span interior simplifies framing and mechanical rough-ins. Here is a typical 40x60 build timeline:
| Phase | Duration | What Happens |
|---|---|---|
| Site Prep & Foundation | 2 - 4 weeks | Grading, compaction, forming, pouring, and curing the concrete slab |
| Steel Erection | 2 - 5 days | Frame, wall panels, roof panels, and trim installed by crew with crane |
| Rough-In (MEP) | 3 - 5 weeks | Plumbing, electrical, and HVAC ductwork installed before walls close |
| Insulation & Drywall | 2 - 4 weeks | Spray foam or batts installed, drywall hung, taped, and finished |
| Interior Finishing | 6 - 10 weeks | Flooring, cabinetry, countertops, fixtures, painting, trim |
| Final & Inspections | 1 - 2 weeks | Punch list, final inspections, certificate of occupancy |
Total turnkey timeline: 4 to 8 months, depending on finish level complexity, local inspection schedules, and weather. By comparison, a traditional stick-built home of the same size typically takes 7 to 12 months.
The single biggest variable in the timeline is permitting. Some rural counties issue building permits in 1-2 weeks, while suburban jurisdictions may take 4-8 weeks for plan review. Factor permitting lead time into your schedule before assuming a construction start date.
Barns & Barndos Insight: Our turnkey process includes permitting assistance, structural engineering, and project management so you are not coordinating between the steel supplier, foundation contractor, and 10 different interior trades. A single point of contact manages every phase, which compresses the timeline and eliminates the scheduling gaps that plague owner-managed builds. Most Barns & Barndos 40x60 barndominiums are completed in 5 to 7 months from permit issuance.
What Foundation Does a 40x60 Barndominium Need?
A 40x60 barndominium typically requires a monolithic concrete slab foundation, which costs $12,000 to $19,200 for the 2,400 square foot footprint (at $5-$8 per square foot). The slab should be a minimum of 4 inches thick with thickened edges at the perimeter and anchor bolt locations, reinforced with rebar or wire mesh, and poured on properly compacted and graded soil.
The foundation is arguably the most important part of any barndominium. It supports the entire steel structure, and mistakes at this stage are extremely expensive to fix later. Here is what you need to know about foundations for a 40x60 build:
Monolithic Slab (Most Common)
Approximately 85% of barndominiums are built on a monolithic concrete slab -- a single, continuous pour that includes the floor and the perimeter footing. For a 40x60 barndominium, the slab is poured to a minimum depth of 4 inches across the interior, with the perimeter thickened to 12-18 inches to support the steel columns. Anchor bolts are embedded in the wet concrete at precise locations dictated by the steel engineering drawings.
A 40x60 monolithic slab requires approximately 30-36 cubic yards of concrete, plus rebar or welded wire mesh reinforcement, moisture barrier, and form boards. Total cost: $12,000-$19,200 for standard soil conditions.
Pier-and-Beam (Special Conditions)
In flood-prone areas, coastal zones, or on sloped lots, a pier-and-beam foundation may be required. Concrete piers are drilled or poured at each column location, and steel or treated-lumber beams span between them. This elevates the building above the flood plain or accommodates grade changes. Pier-and-beam foundations for a 40x60 building typically cost $18,000-$36,000 -- significantly more than a slab, but sometimes the only option for challenging sites.
Foundation Preparation Checklist
- Soil test: $500-$2,000 to confirm the soil can support the building without excessive settling
- Grading: The building pad should be level to within 1 inch across the full 40x60 footprint
- Compaction: Fill soil must be properly compacted to prevent future settling and slab cracking
- Drainage: Grade the surrounding area to direct water away from the foundation on all sides
- Plumbing rough-in: Waste lines and water supply lines are installed before the slab is poured -- changes after the pour require cutting through concrete
- Anchor bolt placement: Must match the engineered steel plans exactly; errors here create costly problems during steel erection
Barns & Barndos Insight: We provide a complete anchor bolt layout plan with every steel building package, engineered specifically for your 40x60 design. This plan tells your foundation contractor the exact location, size, and embedment depth of every anchor bolt. Getting this right is critical -- if the bolts are off by even half an inch, the steel frame will not align properly. Our engineering team reviews the foundation plan with your contractor before the pour to prevent issues.
Important: Barns & Barndos does not build builder-grade or low-end structures. We design and build premium steel homes engineered to last a lifetime and keep your family safe. Every project features custom design, professional-grade materials, and finishes that reflect the quality of a tailored home -- not a commodity product.
Is a 40x60 Barndominium Right for You?
A 40x60 barndominium is right for you if you need 2,400 square feet or more of living space, want the flexibility of clear-span construction, and value the durability and low maintenance of steel building construction. It is the most popular barndominium size because it accommodates 3-4 bedrooms, allows for an attached shop or garage, and hits the structural sweet spot for cost-efficient steel framing.
After reviewing the costs, floor plans, features, and build timeline, here is how to decide if the 40x60 is the right size for your project:
A 40x60 Barndominium Is Ideal If You:
- Need a 3- to 4-bedroom family home with room for a dedicated home office, craft room, or playroom
- Want an attached shop or garage bay (10x40 to 12x40) under the same roof as your living space
- Plan to build on 0.5 acres or more with room for setbacks and a yard
- Want open-concept living spaces with vaulted ceilings and no interior columns
- Prefer low-maintenance steel construction over wood framing
- Are building in a rural, exurban, or acreage setting where barndominiums are accepted
Consider a Different Size If You:
- Need less space: A 30x50 (1,500 SF) or 40x50 (2,000 SF) may serve a smaller household at lower cost
- Need more space: A 40x80 (3,200 SF) or 60x80 (4,800 SF) provides more room without going to two stories
- Have a tight budget under $100,000: A smaller footprint like 30x40 (1,200 SF) is more realistic at the lowest budget levels
- Are building in a strict HOA subdivision: Some homeowners associations do not permit metal exterior buildings; check CC&Rs before purchasing land
Next Steps for Your 40x60 Barndominium
If you have decided that a 40x60 barndominium is the right fit, here is the practical path forward:
- Secure your land and confirm zoning allows a barndominium or metal building on the property
- Set your budget using the cost ranges above, including both building and site costs
- Explore financing early -- read our barndominium financing guide to understand construction loan requirements and get pre-approved
- Choose a floor plan that matches your household size, lifestyle, and whether you want an attached shop
- Get quotes from at least 2-3 builders, comparing scope of work and specifications, not just total price
- Request a free budgetary estimate from Barns & Barndos to see transparent turnkey pricing for your specific 40x60 design with our Standard, High End, or Luxury finish tiers
Key Takeaways: 40x60 Barndominium Build Guide
- 2,400 SF of living space on a single level (4,800 SF with a second story), making it the most popular barndominium size in the U.S.
- Total cost range: $60,000 (shell kit) to $720,000 (luxury turnkey), with mid-range turnkey builds at $192,000-$312,000
- 3-4 bedrooms with open-concept living, or 3 bedrooms plus an attached shop/garage under one roof
- 40-foot clear span means zero interior columns and complete floor plan flexibility
- 4-8 month build time for turnkey, roughly half of traditional stick-built construction
- Foundation cost: $12,000-$19,200 for a standard monolithic slab at $5-$8 per square foot
- Barns & Barndos turnkey pricing: $564,000 (Standard) / $660,000 (High End) / $720,000 (Luxury), all-inclusive with galvanized steel and 50-year PVDF warranty
